Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320

Product Categories

Shenzhen Jingcai Intelligent Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : JC2432S024R

Place of Origin : China

MOQ : 300

Price : ￥42/PCS

Payment Terms : L/C, T/T

Supply Ability : 5000pcs/day

Delivery Time : 28day

Size : 2.4inch

Resolution : 240*320

Touch : Resistance touch

Name : JC2432S024R

Driver IC : ILI9341

Product Weight : 40(g)

Contact Now

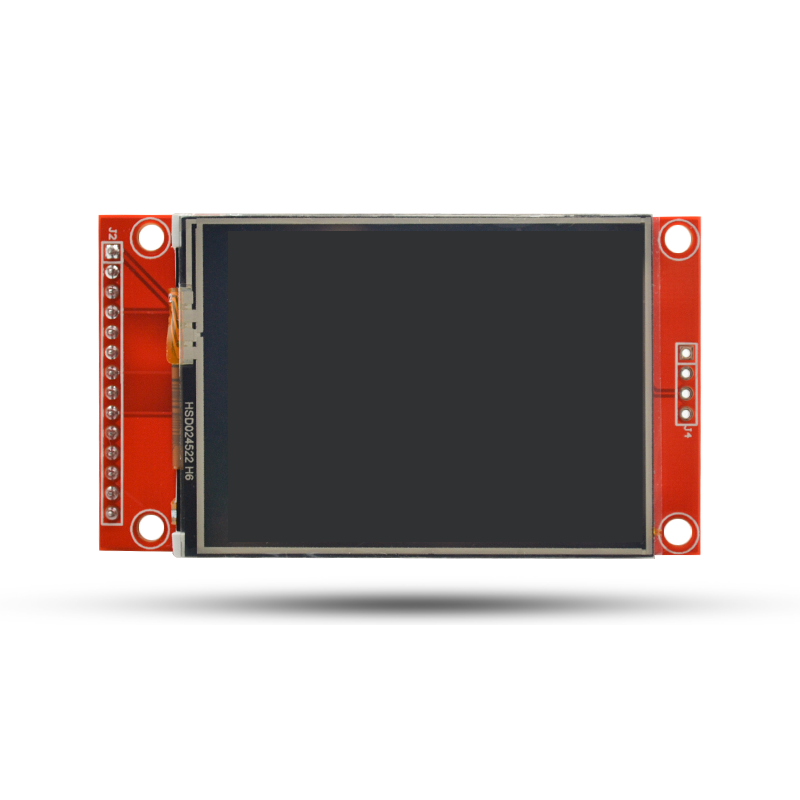

2.4 inch Resistive touch SPI LCD TFT Module 2.4" 240*320 ILI9341 TFT display Module Smart Display Screen

Resistive Touch SPI Tft Lcd Module Display ILI9341 2.4 Inch Tft Lcd Display 240x320

Product Description

The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9341 with a resolution of 240x320 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.

Product Parameters

Name	Parameter
SKU	JC2432S024R
Display Color	RGB 65K color
Touch mode	Resistance touch
Screen Size	2.4(inch)
Type	TFT
Driver IC	ILI9341
Resolution	240*320 (Pixel)
Module Interface	4-wire SPI
Active Area	48.96(L))X36.72(W)MM
External dimension	77.18(L)X42.72(W)MM
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	3.3V
Visual angle	12:00 o'clock
Product Weight(Package containing)	40(g)

Number	Pin Label	Pin Description
1	VCC	5.0 power input
2	GND	Power ground
3	CS	LCD chip select signal, active low
4	REST	LCD reset signal, low level reset
5	D/C	Control register selection
6	SDI(MOSI)	Control data transmission
7	SLK	Clock signal
8	LED	Backlight control, high level lighting, connected to 3.3V
9	SDO(MISO)	SPI bus read data signal
10	T_CLK	Touch SPI bus clock signal
11	T_CS	Touch screen chip selection signal, low-level enable
12	T_DIN	Touch SPI bus input
13	T_DO	Touch SPI bus output
14	T_IRQ	Touch screen interrupt signal, low level when touch is detected
